Introduction:

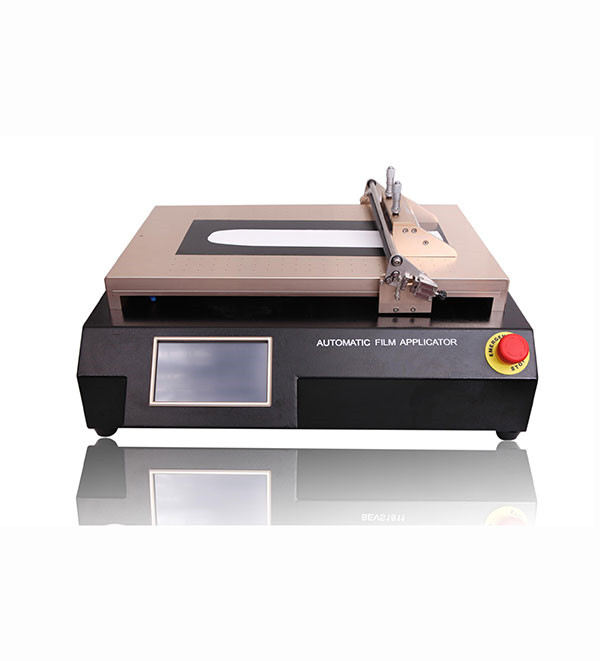

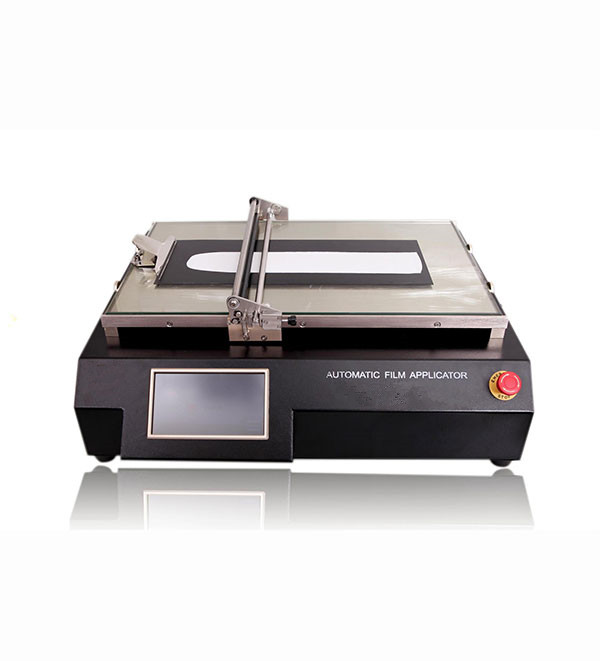

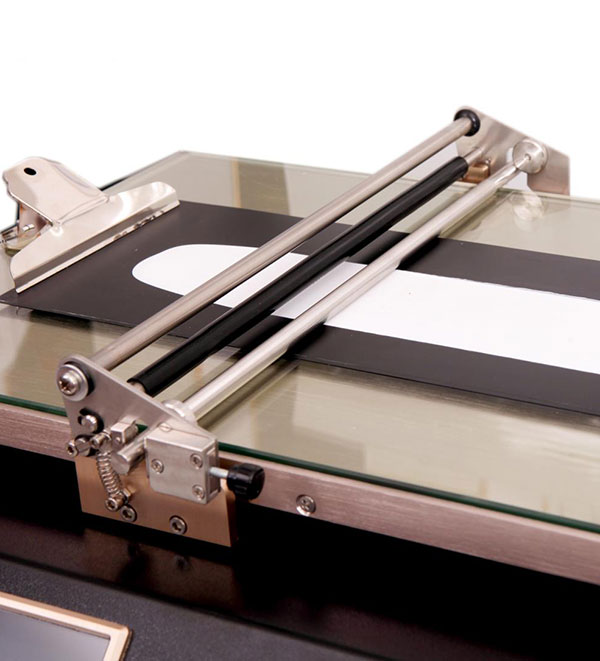

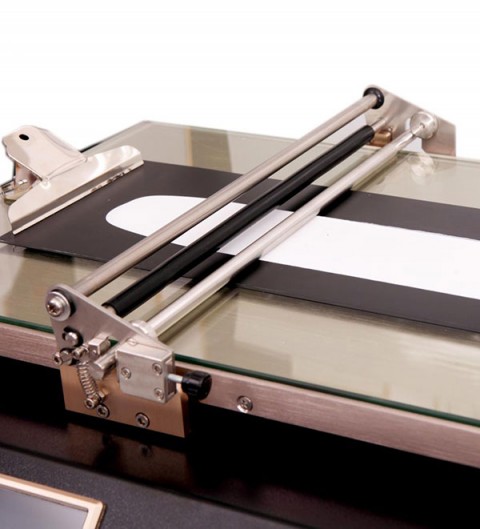

BEVS Automatic Film Applicators are made with high precision machined components, sturdy mainframe and heavy duty power train assembly, to ensure long term reliable operation. Consistent drawdown conditions such as speed, flatness, combined with applicator gap and geometry are essential elements to obtain perfectly reproducible samples, eliminating human error and uncertainty.

Software Introduction:

◆Advanced touch screen technology, Chinese/English available.

◆Film size:A4,A3 and User Defined.

◆Adjustable speed.

◆Report output:tab in the coating’s name,viscosity,thickness for the report to be output.

Technical Specification:

 Model  BEVS1811/1  BEVS1811/2
 Speed  20-300mm/sec  20-300mm/sec
 Stroke Length(Max)  360mm  360mm
 Test Panel  420×300mm  420×300mm
 Test Platform  Glass bed with clamp  Vacuum bed
 Bar Coater Capacity  Diameter  10-13mm  10-13mm
 Length  320mm  320mm
 Standard  ASTM D328  ASTM D328
 Power  230±10%,50/60HZ  230±10%,50/60HZ

Order Information:

BEVS 1811/1              Automatic Film Applicator (with glass bed)
BEVS 1811/2              Automatic Film Applicator (with vacuum bed)
