Introduction:

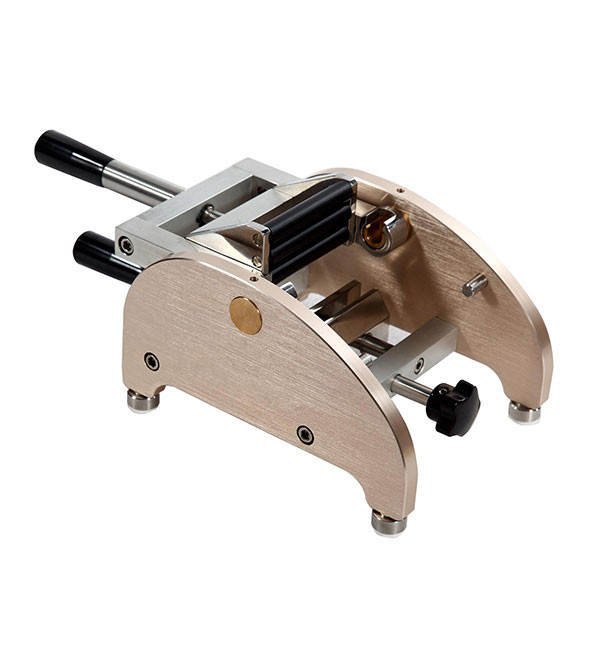

A very robust mechanical unit for determining the elasticity, adhesion and elongation of dry paint on metal sheet.

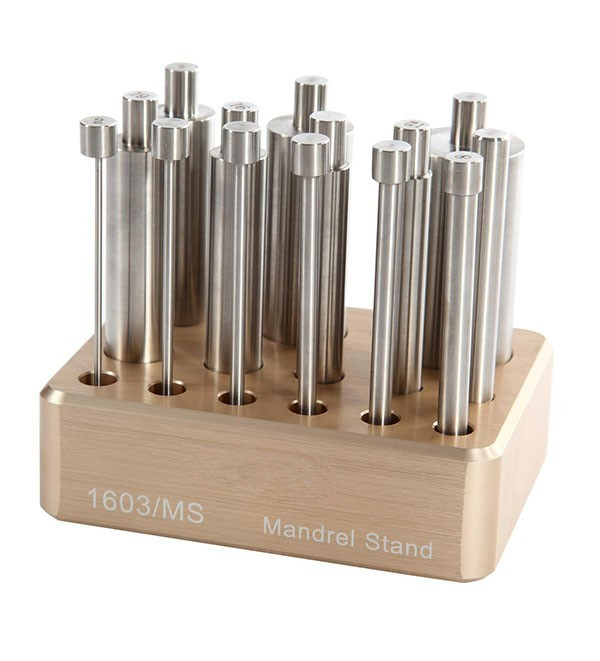

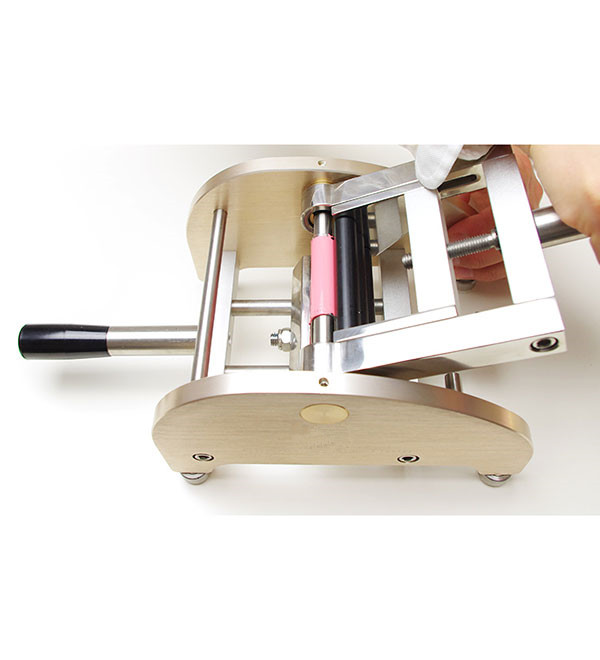

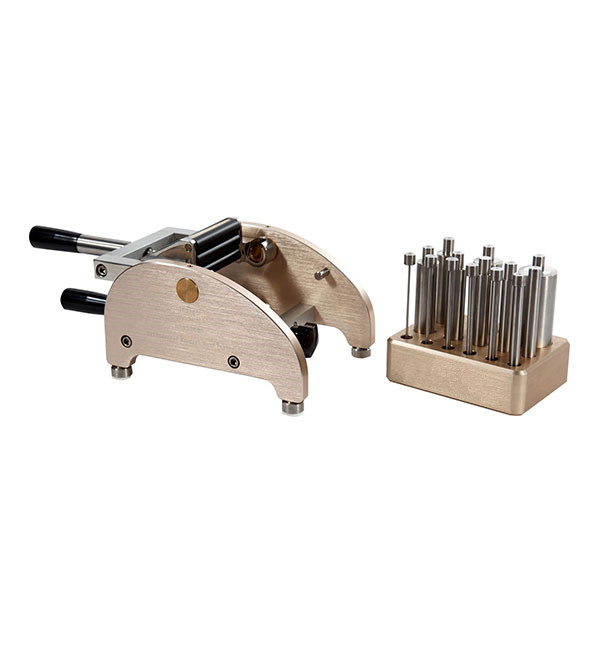

Perfect design, the instrument can be adapted to the diameter of the mandrel used. The coated specimens up to 70mm width, are bent perfectly and regularly on decreasing mandrels until cracks can be observed. Each instrument is supplied with a kit of 14 stainless steel mandrels with diameters of: 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 19, 20, 25 and 32 mm.
Technical Specification:
◆ Overall Dimension:325×150×125mm
◆ Net Weight:6 KG
◆ Maximum Sample Width:70mm
◆ Sample Thickness: 0.3 ~ 1 mm
◆ Mandrels With Diameters:
2,3,4,5,6,8,10,12,13,16,19,20,25 and 32mm
Standard:
ASTM D522,EN13523-7, ISO 1519-93
Order Information:
BEVS1603 Cylindrical Mandrel Bend Tester
Other mandrels are available upon request.
