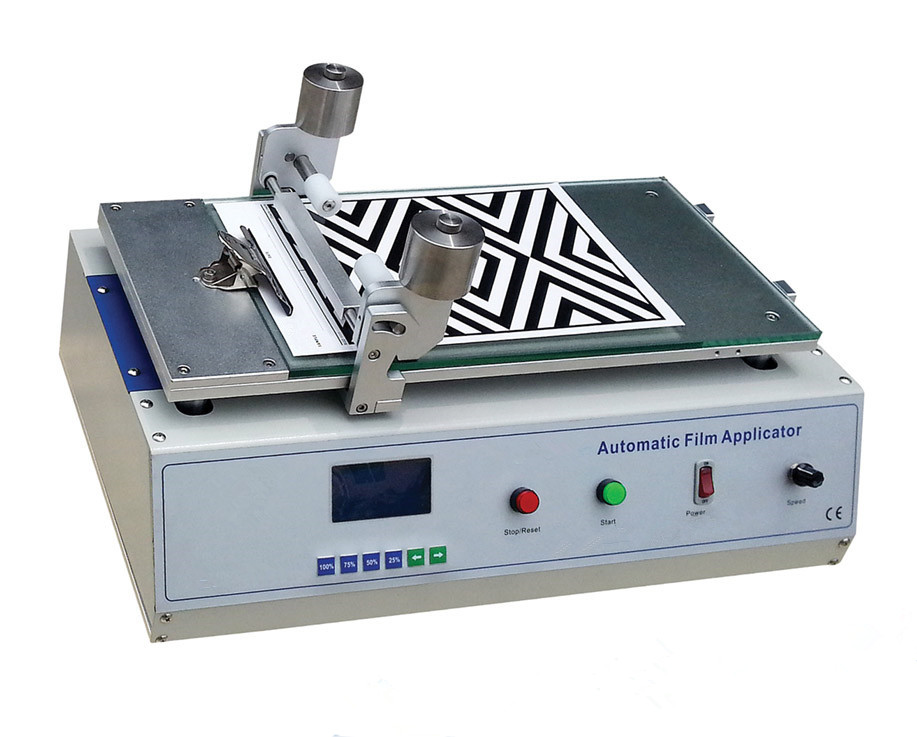

Film Applicator with Holding Device
Comparing with JL 218 Automatic Film Applicator , this film applicator uses glass bed （without vacuum holes）as drawdown bed. It’s only available for applicating on the hard substrate（no need be sucked）,such as metal or glass substrate.
◆ Adjustable variable speed：2~100mm/s
◆ Highprecision linear guide bar and direct current motor without carbon brush. Making the draw down speed more stable.
◆ Reasonable design bracket,easily and simply operated, and can add any load
◆ High smooth precision glass drawdown bed for easier cleaning
◆ Can set the starting point freely, is suitable for different size substrates
◆ Four types application distance can be selected freely.
◆ Applicable to all Biugeds different type and size applicators and wire bars
MainTechnical Parameters：
■Draw down base：400mm×220mm
■Draw down length：280mm
■Draw down speed：2～100mm/s（adjustable variable speed）
■Total power：50W
■Electrical power source：220V；50/60Hz
■Overall dimensions：550×320×340mm（Length by width by height）
■Weight：25Kg
■Ordering Information：
JL 219— Film Applicator with Holding Device
